Gas Storage Compressor Package

Natural gas, like many other commodities, can be stored for an indefinite period of time in natural gas storage facilities for later consumption. Gas storage is principally used to meet load variations. Gas is injected into storage during periods of low demand and withdrawn from storage during periods of peak demand.

Character

● Low pressure ratio, high flow rates in beginning of cycle (initial injection or withdrawal);

● High pressure ratio, low flow during end of cycle for injection or withdrawal;

● Discharge and Suction pressure can vary, Staging and unloading used to match storage curve.

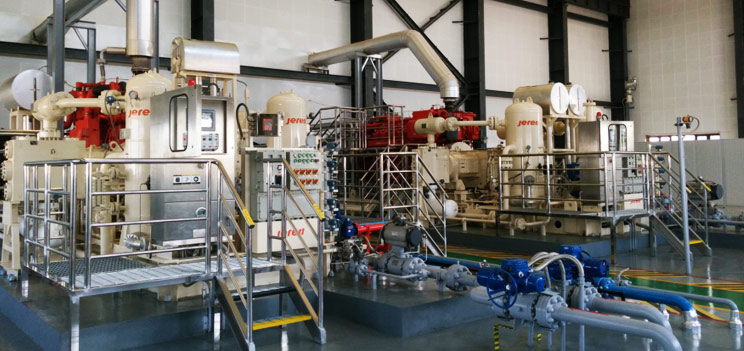

Engine Driven Gas Storage Compressor Package

Delivery Time: 2015

Location: Turkey

Shaft Power: 4900HP@ 1000RPM

Model: Ariel KBU/6

Flow: 46.62 MMSCFD (132×104Nm3/d )

Driver: Waukesha

Inlet Pressure: 588 Psig

Outlet Pressure: 3,013.5 Psig

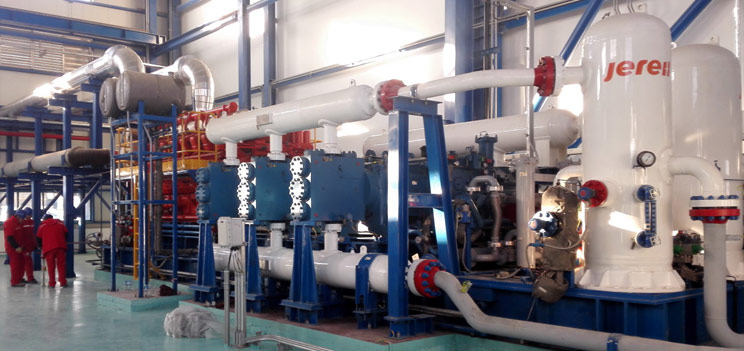

Engine Driven Gas Storage Compressor Package

Delivery Time: 2016

Location: China

Shaft Power: 1680HP@ 1200RPM

Model: Ariel JGD/2

Flow: 22.4 MMSCFD (60×104Nm3/d )

Driver: Waukesha

Inlet Pressure: 580.15psig-1160.3Psig

Outlet pressure: 2320.6Psig

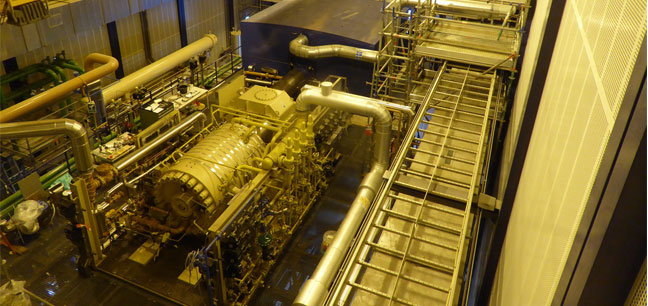

Gas Storage Compressor Package

RB

Power Range:40MW

Design Pressure:1000bar

Driver:E-motor/Gas Turbine

HOFIM

Power Range:18MW

Design Pressure:300bar

Driver:High-Speed Motor

Compressor is utilized to store and extract gas in gas storage. The complete operation of the compressor unit ensures the necessary capacity and transportation flexibility of natural gas required for the operation of the gas storage.

Jereh and MAN cooperate strategically in the application field of centrifugal compressor used in underground gas storage.
