Gas Gathering Compressor Package

Gas Gathering compressor is compulsory for each gas well. The compressor in this application is used to collect the gas from one well or several wells to boost and transport to downstream gas treatment plant. Since in most of the cases the compressors are located at or near wellhead and there might be no availability of civil utility such as power supply, instrument air or drain pit and furthermore heavy condensate is also contained in the gas, thus a specific solution is made for this application to satisfy the site and gas condition. Furthermore, while time goes on year by year, the gas pressure shall deplete, therefore a specific configuration is designed especially for this case.


● Applicable to extreme low pressure even minus pressure

● Applicable to wide range of flow fluctuation

● Applicable to high water gas content

● Applicable to high compression ratio

● Specific solution against pressure depleting in years

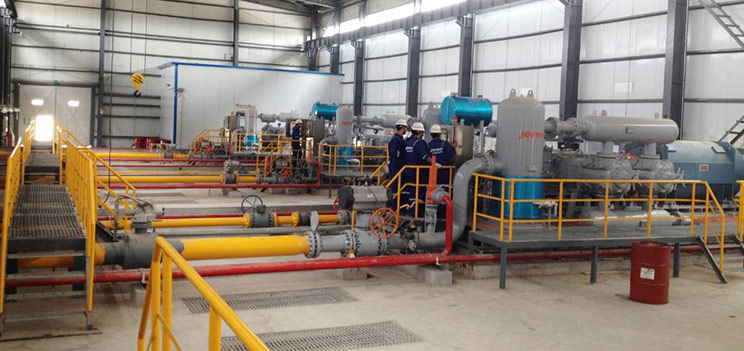

Motor Driven Gas Gathering Compressor Package

Delivery Time: 2013

Location: China

Shaft Power: 1522HP@ 993RPM

Model: Ariel JGC/2

Flow:  35.85MMSCFD (110×104Nm3/d )

Driver: Nanyang

Inlet Pressure: 235.2 Psig

Outlet Pressure: 735 Psig

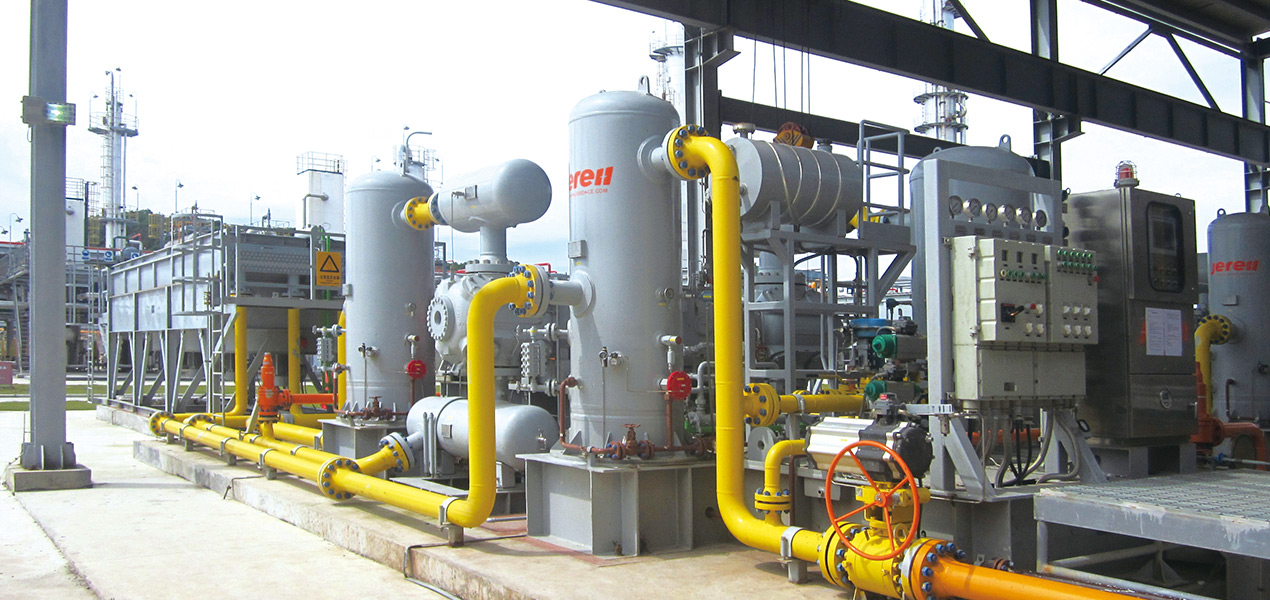

Motor Driven Gas Gathering Compressor Package

Delivery Time: 2014

Location: China

Shaft Power: 2446HP@ 995RPM

Model: Ariel JGC/2

Flow: 20.48 MMSCFD (58×104Nm3/d )

Driver: ABB

Inlet Pressure: 74.97-147 Psig

Outlet Pressure: 926.1 Psig
