Gas Injection Compressor Package

In the oil industry, gas injection refers to pumping different sorts of gasses to the subsurface oil reservoirs in order to stimulate crude oil. The composition of the gas may be different such as carbon dioxide, nitrogen and so on.
Gas reinjection is the reinjection of natural gas into an underground reservoir, typically one already containing both natural gas and crude oil, in order to increase the pressure within the reservoir and thus induce the flow of crude oil or else sequester gas that cannot be exported.

Character

● Sour gas application

● Enhance oil production

● Reduce the emission of CO2 into the atmosphere

● Low atmosphere temperature application

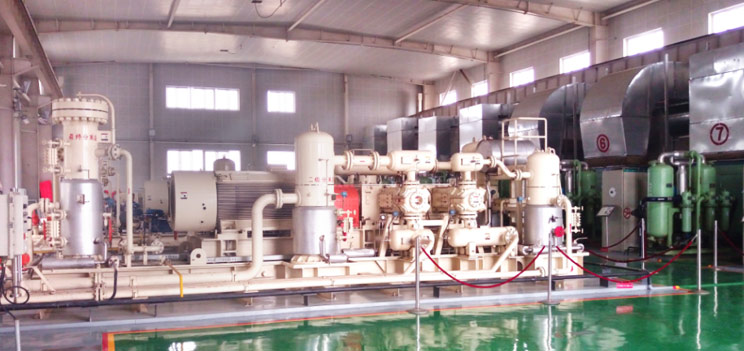

Motor Driven Gas Injection Compressor Package

Delivery Time: 2012

Location: China

Shaft Power: 1087HP@ 990RPM

Model: Ariel JGE/4

Flow: 3.88 MMSCFD (11×104Nm3/d )

Driver: Jiamusi

Inlet Pressure: 2.94-8.82 Psig

Outlet Pressure: 419 Psig

Motor Driven Gas Injection Compressor Package

Delivery Time: 2014

Location: China

Rated Power: 460kW@ 990RPM

Model: Ariel JGR/4

Driver: ABB

Flow: 3.54MMSCFD(10×104Nm3/d)

Inlet Pressure: 130 Psig

Outlet Pressure: 1160 Psig
