LNG Dispenser

LNG dispenser is special equipment with metering and pricing devices, which fuels LNG to storage vessels. It consists of flowmeter, regulating valve, gas gun, gas return gun, gas return hose, electronic controller and auxiliaries etc.
The control system of dispenser adopts the design of multi-core processing and intrinsic safety design. The core components such as mass flowmeter and solenoid valve can suit severely cold environment and can be used in low temperature of -40℃.Valve and pipelines are insulated by full vacuum structure. Simple pipeline arrangement reduces the gasification rate of LNG.

Function:

● Unit price and density setting.

● Quota and quantitative fueling.

● Sequential and non-sequential fueling.

● IC card fueling and Non-IC card fueling.

● Breaking protection, pressure limiting protection and emergency stop.

● Printing ,shift turnover.

● Cumulative fueling per shift ,total cumulative fueling.

● Fueling conditions inquiry, station management, and network management of fueling station.

Technical Parameters

No. Item Technical Parameters
1 Specifications and Models JQL-80-I,JQL-80-II
2 Capacity range (10~80)kg/min
3 Max. allowable error ±1.0%
4 Max. working pressure 1.6MPa
5 Ambient temperature (-40~+55)℃
6 Pipe design temperature (-196~+55)℃
8 Min. grading value of reading 0.01kg
10 Gas fueling indication range (0.01~9999.99)kg
12 Totalizing measurement range 99999999.99kg
13 Breakaway valve Breaking force(400~600)N

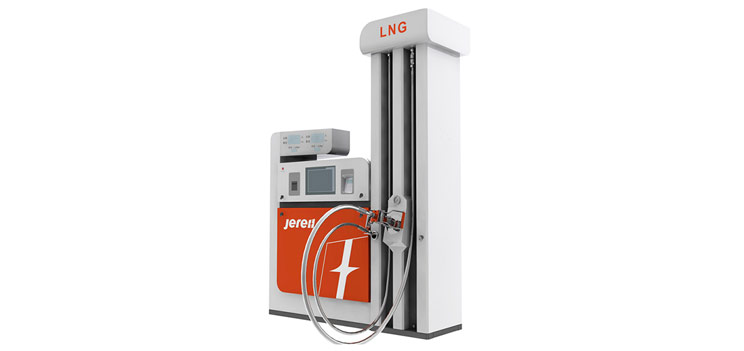

LNG Single Gun Dispenser

Outline dimension(LxWxH):1,250×750×2,380mm

Weight:350kg

Working power:AC 220V/50Hz

Power:≤100W

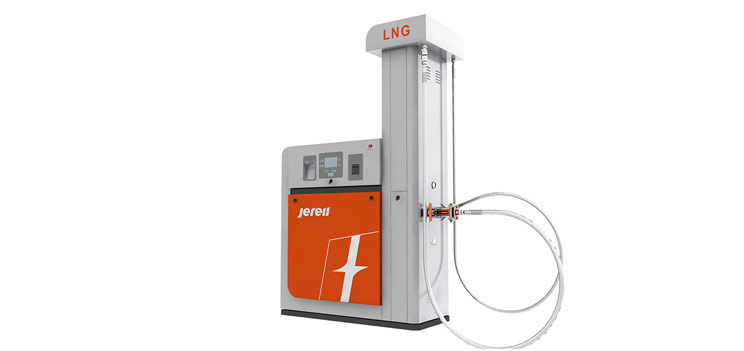

LNG Double Guns Dispenser

Outline dimension(LxWxH):1,600×900×2,380mm

Weight:500kg

Working power:AC 220V/50Hz

Power:≤100W

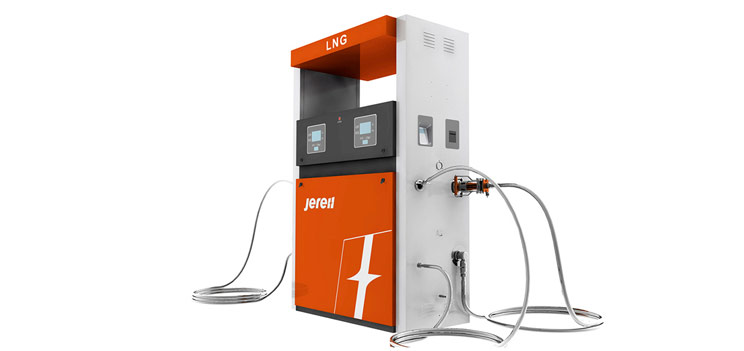

LNG Double Guns Dispenser

Outline dimension(LxWxH):1,600×730×2,780mm

Weight:500kg

Working power:AC 220V/50Hz

Power:≤100W

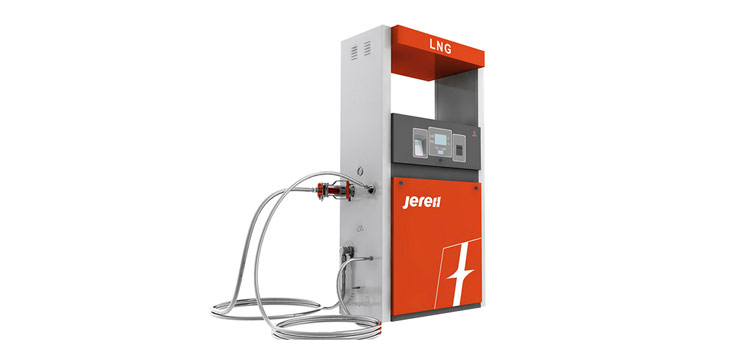

LNG Single Gun Dispenser

Outline dimension(LxWxH):1,500×730×2,590mm

Weight:400kg

Working power:AC 220V/50Hz

Power:≤100W
